Small Solids Liquid Separation Unit for Europe Client

With more than ten years’ experience in designing and manufacturing the separation equipment and system, GN is able to provide the customized solid liquid separation solution according to clients’ requirements in different working conditions.

The solids size is always various in the liquid, which makes only one single machine cannot do the complete separation job. According to the solids size distribution, series separation equipment would be used step by step to do the separation.

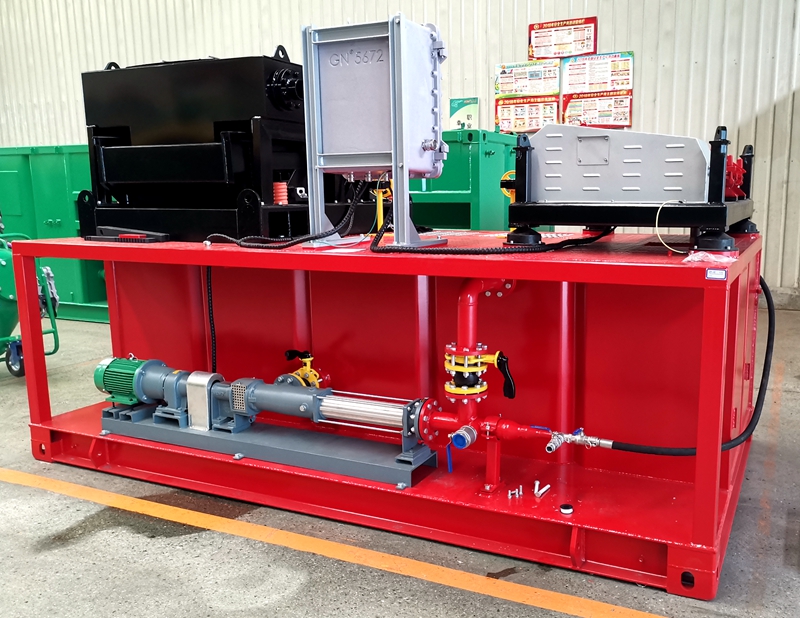

The small solids liquid separation unit is 2-step separation module. The first step separation machine is a primary vibrating screen which is use to remove the coarse solids in the liquid. As the small capacity, therefore, the vibrating screen used is a mini type. After treated by the screen, the fine solids with liquid will pass through screen opening and drop into the under located collection tank. And then the liquid will be pumped by a replacement cavity pump to the mini decanter centrifuge for fine solids separation. The mini decanter is running at more than 4000RPM which could separate out the solids with size down to 2 microns without adding any flocculants.

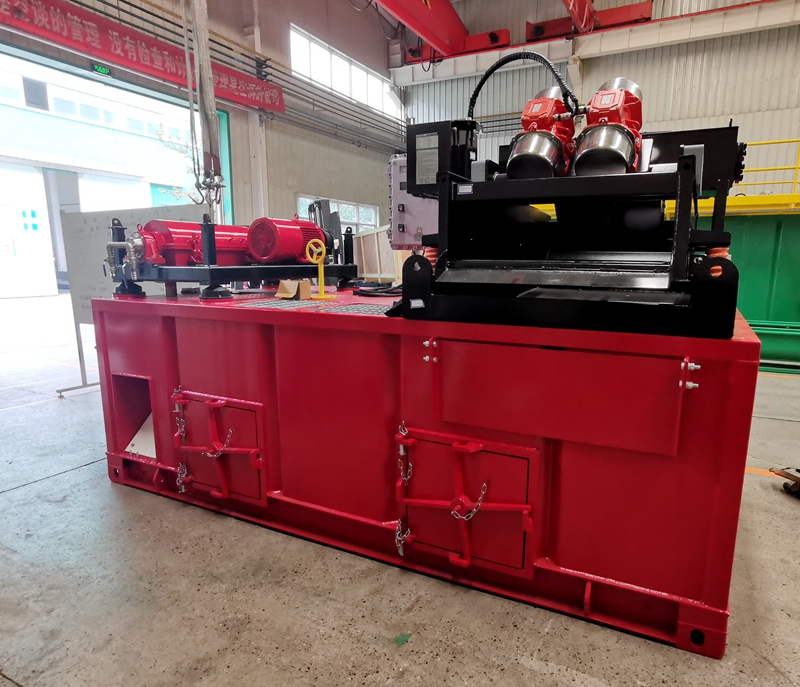

The mini vibrating screen and mini decanter are both the smallest models in GN production line. They are mainly used some small capacity solids liquid separation project, for example the diamond core drilling mud recycling or a demo unit. With the small dimension and compact structure, the separation equipment can be mounted on same skid for easy installation and transportation. When design the pipeline manifold and control panel arrangement, in consideration the convenience of operation, GN can reserve the pipeline port for easy connection or other purpose and the control panel towards for easy operation.

GN is able to provide the customized solids liquid separation unit according to different flow capacity. For more information, please feel free to contact us.
