6 Sets Mud Dewatering Decanter Centrifuge for Shenzhen Client

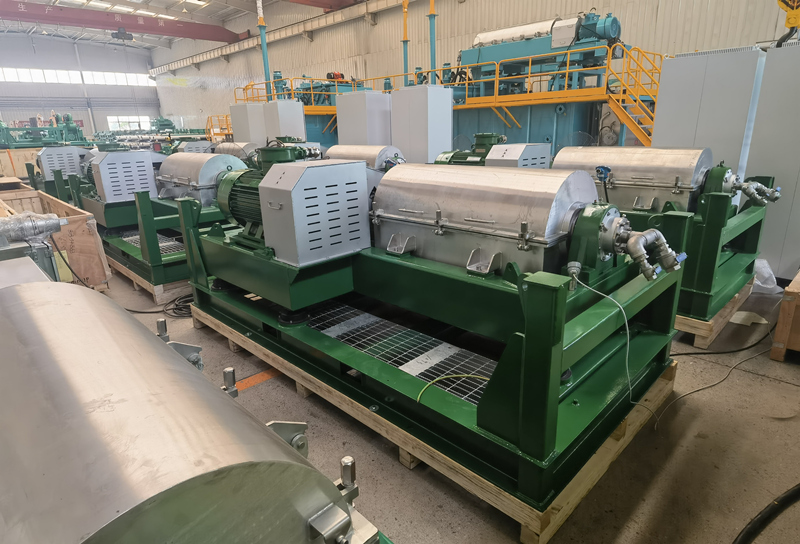

Recently, GN has completed the production of a batch of mud dewatering decanter centrifuges for a domestic environmental company. At present, this batch of decanter centrifuge has been assembled and tested, and will be sent to the customer's site after receiving the delivery instruction.

Mud dewatering centrifuge is a star product among GN's many products. It has the characteristics of stable performance, high degree of automation and high cost performance. It can be widely used in various mud dewatering and solid-liquid separation projects, such as drilling cuttings removal for drilling mud, dewatering applications for construction mud, and sludge dewatering in municipal wastewater treatment. It can reduce operating costs and waste discharging; it is modern equipment that can bring great returns to enterprises and society.

The mud dewatering decanter centrifuge in this order has the following features:


1. Double motor drive: The main motor and the auxiliary motor drive the bowl and the screw propeller of the decanter respectively, so there is a speed difference between the bowl and the screw propeller, so that the solid slag can be smoothly removed from the bowl. In the selection of the reducer, the designers of GN have fully considered the torque and differential ratio required during the operation of the equipment, so as to ensure that the equipment has sufficient working capacity. The dual motors are all installed at one end of the decanter, leaving enough space for the operator to easily operate and maintain the equipment.
2. In terms of protecting the parts in contact with the feeding material, GN chooses high-hardness tungsten carbide alloy plates or sleeves to protect the blades, material distribution ports of the screw pusher and the bowl and the slag discharge ports; the protective sleeve or alloy plates has sufficient thickness can cope with the material scouring during the running of the equipment, prolong the service life of the equipment, reduce the maintenance frequency, and save the maintenance cost for the users.

3. In order to improve the operating efficiency of the equipment, GN is equipped with a VFD control cabinet, in which the frequency converter of main motor, auxiliary motor and the slurry pump are installed. The equipment can be operated at different speeds according to customer requirements and material conditions. So that to achieve the customer's processing effect.
4. GN's mud dewatering centrifuge needs to keep the upper cover of the collection box closed when working. When the bowl needs to be checked, it needs to stop or open the upper cover of the collection box. With the help of the air spring, operator can open the top cover of the collection box easily; in order to facilitate the hoisting of the equipment, the equipment bases in this order are all made with hoisting chassis according to DNV hoisting requirements.

For more information on mud dewatering decanter centrifuges, please feel free to contact GN Separation.
