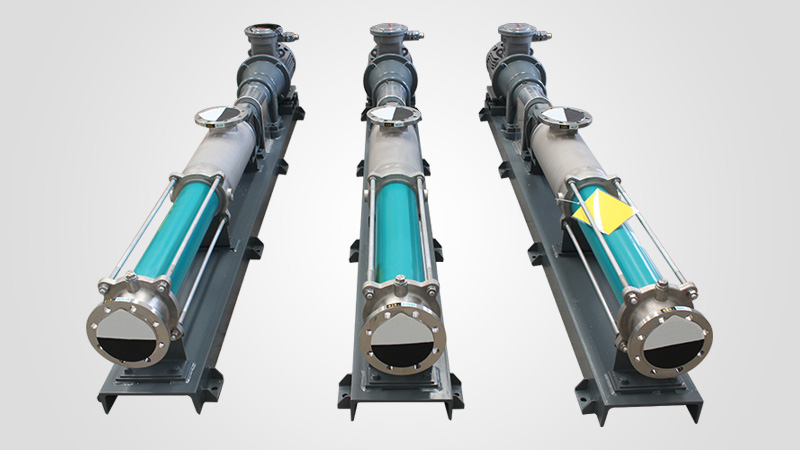

Progressive Cavity Pump

GNG series Progressive cavity pump is also called single screw pump. The Progressive cavity pump consists of helical rotor turning inside a helical stator. When the rotor turns inside the stator, the honeycomb progresses spirally along the axis of the pump without changing either shape or volume. This action transfers the material from the pump intake to the pump discharge without degrading the product. So the GNG series Progressive cavity pump is an ideal pump for feeding decanter centrifuges.
  • GNG series Progressive cavity pump is also called single screw pump. The Progressive cavity pump consists of helical rotor turning inside a helical stator. When the rotor turns inside the stator, the honeycomb progresses spirally along the axis of the pump without changing either shape or volume. This action transfers the material from the pump intake to the pump discharge without degrading the product. So the GNG series Progressive cavity pump is an ideal pump for feeding decanter centrifuges.

    The GNG series pump Progressive cavity pump body and transmission parts are designed according to the maximum load of 6 bar pressure. The pump has many features include: stronger strength, durable, safe and reliable. The flow and head of the pump fully meet the requirements of sludge transportation and dosing. Moreover it fully meet the stable and unmanned long-term operation.

    GNG series Progressive cavity pump Specifications

    ModelFlow (m3/h)Pressure (Mpa)Motor (Kw)Max Speed (RPM)Inlet (Inch)Outlet (Inch)Weight (Kg)Dimension: L×W×H(mm)
    GNG10-040B 10(44GPM) 0.3 4 244 3 3 245 2245×320×550
    GNG20-055B 20(88GPM) 5.5 210 3 3 323 2450×340×562
    GNG30-075B 30(132GPM) 7.5 258 4 4 386 2761×370×600
    GNG40-110B 40(176GPM) 11 252 5 5 454 3270×370×665
    GNG50-110B 50(220GPM) 11 273 5 5 608 3790×400×782
    GNG60-150B 60(264GPM) 15 225 5 5 649 3322×550×740
    GNG70-220B 70(308GPM) 22 230 6 6 875 3740×420×785
    GNG80-220B 80(352GPM) 22 283 6 6 875 3740×420×785
    GNG90-220B 90(396GPM) 22 205 6 6 875 3740×420×785

    Features of GNG Centrifuge Feed Pump

    The pump stator rubber of the GNG series Progressive cavity pump is firmly combined with the outer casing. There are no seams, pores or cracks in the working face. The stator is made of SBBPF or other required material. The design normal working life is not less than 10,000 hours under the specified working conditions. The stator feed end is funnel-shaped, which is conducive for full flow of material.

    Depends on different material and application, the pump rotor can be stainless steel or hard alloy material with special treatment to make it anti abrasion as well as corrosion resistant.

    The gear reducer selected for GNG series pump is compact and integrated with the motor. The motor is suitable for 380V/460V or any customized power supply. It is completely suitable for 10-60Hz range regulation.

    GNG Series Progressive cavity pump Application Industries

    • CHEMICAL Industry: Polymer, sizing, resins and hardeners, acids and alkaline, oils, water based paint...
    • MINING Industry: Slurries, explosive preparation, coloring agent, miscellaneous agents (grinding)...
    • PAPER Industry: Coating color, dyes, starch, kaolin, talc, bentonite, calcium carbonate, titanium dioxide...
    •  MEAT INDUSTRY: Pet food, fatty products, grease, fat or oil (tallow, lard, colza, olive, palm, enzymes...
    • SUGAR INDUSTRY: Molasses, glucose, syrup, starch, honey, liquor, ...
    • BEVERAGE INDUSTRY: Juices, wine-making, ingredients, additives, beers, syrups, ...
